nextnanomat

Graphical user interface for the nextnano software

nextnanomat screenshot RTD

Software

nextnanomat is a GUI (graphical user interface) for editing input files (ASCII, XML), organizing simulations and submitting jobs (directly or via a batch list), as well as visualizing simulation results. Parallel job execution is supported on multi-core CPUs automatically.

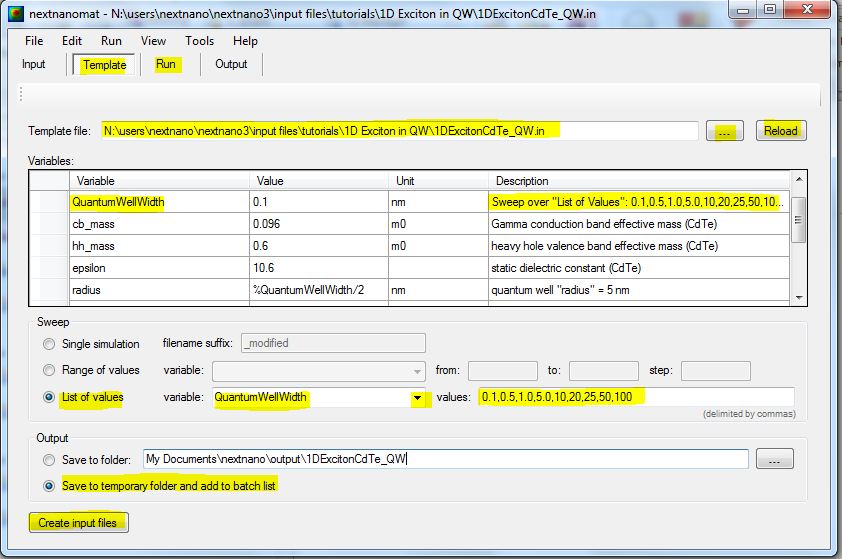

nextnanomat screenshot Template

Features

nextnanomat is customized to work with the following software:

  • nextnano³
  • nextnano++
  • nextnano.MSB
  • nextnano.QCL

However, it is general enough to be adjusted to any TCAD or scientific software that reads in an ASCII file, passes this ASCII file to an executable, and visualizes its 1D, 2D and 3D results.

nextnanomat can be used as a visualization software for 1D, 2D and 3D results (e.g. somewhat "similar" (but much simpler) than Origin, gnuplot, Compaq Array Viewer, Intel Array Viewer).
The focus lies on quick visualization rather than on professional editing of graphs.

Visualization features:

  • 1D data: x, fi(x)
  • 2D data: AVS/Express and VTK format, Aij format
  • 3D data: AVS/Express and VTK format (i.e. 2D slices through 3D data)
  • 1D slices through 2D data (incl. export)

Please submit feature requests to support [at] nextnano.com.


Documentation

You can find the online documentation of nextnanomat here.


nextnanomat screenshot Quantum dot

Download

nextnanomat - (Version 3.1.0.0 - 2017-06-30)
Instructions: No installation is required, just unzip the file, run it and set under 'Tools' ==> 'Options' the path to your nextnano³ and nextnano++ executables.

Download
